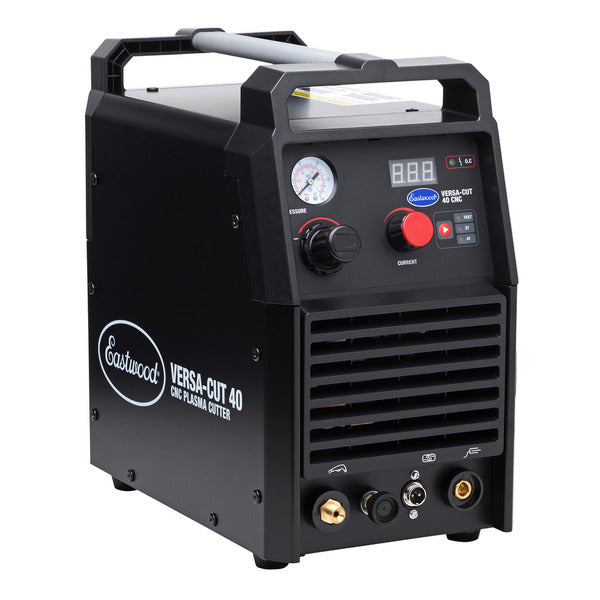

Eastwood Versa-Cut 40 CNC Plasma Cutter ( No Torch Included)

The Eastwood Versa-Cut 40 CNC Plasma Cutter is the best solution for making clean, fast cuts through steel, stainless or aluminum as thin as 24-gauge, or as thick as 3/8” using a hand torch while adding CNC operation features and functionality. Compared to our standard Versa-Cut 40 with high frequency start, the Versa-Cut 40 CNC features a blowback pilot arc to minimize the possibility of interference. Additionally, the rear mounted 12-pin plug is ideal for hardwiring dedicated CNC plasma table controls with or without a height controller. Dual voltage capability allows the versatility to plasma cut with 120V household outlets and receptacles, or full 240V power when available. This Versa-Cut 40 CNC Plasma Cutter does not come with a a torch. Two torch options are available (NOT INCLUDED) 66724 Hand Torch or 66725 Machine Torch for use with the Eastwood Versa-Cut 40 CNC Table. Specifications: Power Voltage (V): 120V±10% VAC, 50/60 Hz, 1 Phase - 240V±10% VAC, 50/60 Hz, 1 Phase Maximum Output No Load Voltage (V): 339V DC Rated Input Current (Amps): 120V: 19.7 Amps - 240V: 27.4 Amps Output Voltage: 120V: 86V to 92V - 240V: 86V to 96V Output Current Range (Amps): 120V: 15 to 30 Amps - 240V: 15 to 40 Amps Duty Cycle (%) 120V: 60% @ 16 Amps, 100% @ 15 Amps Duty Cycle (%) 240V: 60% @ 40 Amps, 100% @ 31 Amps Air Requirements: 5 - 7 CFM @ 60 psi Maximum Material Thickness: 3/8 Inch Weight: 24.47 lbs. (11.1kg) Dimensions: 14.06” x 8.46” x 14.69” (357mm x 215mm x 373mm)
